STORRWALL T-800

STORRWALL T-800

The robust wall

The T-800 Bifold is the best-seller from our comprehensive program.

It is a robust, mobile partition with excellent insulation values, particularly handy due to the central hinge and its light weight. Extremely suitable for International Transport (long-term separation of temperatures). Long service life thanks to the use of impact-resistant materials and the unique module construction make it easy to replace all damaged components yourself.

Available in many variants, such as in addition to 2-parts also 3 and 4-parts (compact storage), but also specially tailored for meat hangers and small transporters with curved inner walls.

All optionally equipped with a fan, return ventilation holes, as well as provisions for existing wheel arches in your vehicle.

T-800 variants

Above: Catering wall with integrated safety bar for quick fixation in the vehicle, right part can be opened for easy access

left: 1/3 chamber version push-in
super light, top insulation, easy handling


Many other variants can be implemented, see also T-800 / Special solutions.

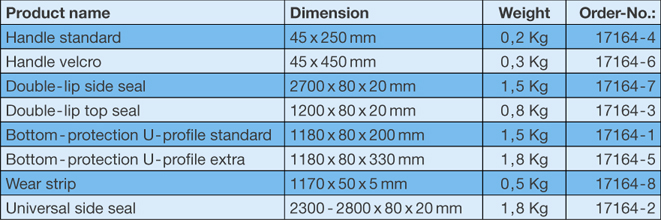

T-800 Spare parts and Extra options

Built-in fan kit „large“

For installation in all T-800 walls of 82 mm thick, complete with spiral cable and temperature sensor and ready for use. Available in 12 volts or 24 volts.

Capacity 1300 m3/h

Spiral cable with 2-pole plug

Is included as standard in the above fan kits. Also separately available as in length

6 m and 12 m with mounted 2-pole plug fitting in fan kit. Other side unfinished. Here a plug must be fitted, matching the socket in the vehicle.

Foil colors

Standard colors ( in addition to blue) are grey, yellow and green. Are often available without extra costs. Other colors, texts, logos, fleet numbers etc. we can provide and apply at extra cost!

Bottom-protection

Available as a version with 20 cm side height or as an extra floor protection with 33 cm side height. The 5 mm high, pre-drilled wear protection is attached under the floor protection.
(Picture above with wear protection)

Return ventilation opening

Is standard installed in combination with fan kit to obtain return circulation from „warm“ side to „cold“ side of the partition wall. However, also separately available (without fan) to get yourself a certain inlet of cold air in the second compartment. Sealing flap is provided with velcro and to adjust the opening space. With long-term non-use, a 20x20cm spacer is also available to optimize insulation.

Stable Handgrip

Handgrip set (standard)

1 set consisting of 2 handles (front and rear) and 4 stainless steel mounting plates with accompanying mounting bolts for 82mm thick walls. (T-800)

„Extra“ handle

The same as standard, however provided with Velcro to create a loop to fix a load restraint bar or beam to the wall.

Cargo restraint equipment

A wide range of tested mechanical and textile products.
You can find load securing in our shop.

Repair kit

With self-adhesive PVC tarp and cleaning cloth size 20x30cm.
